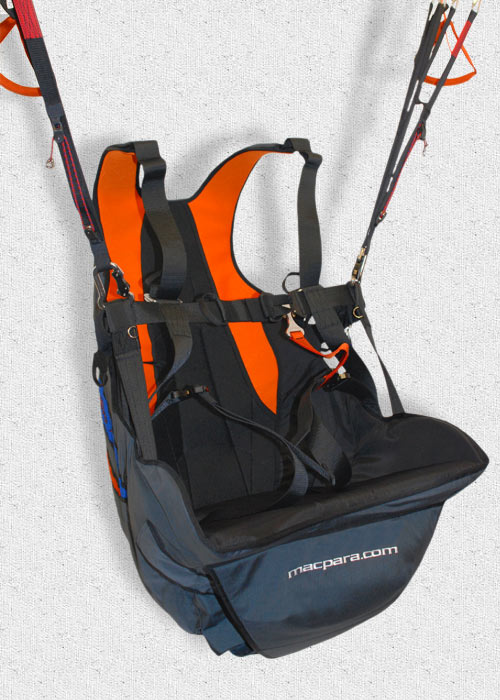

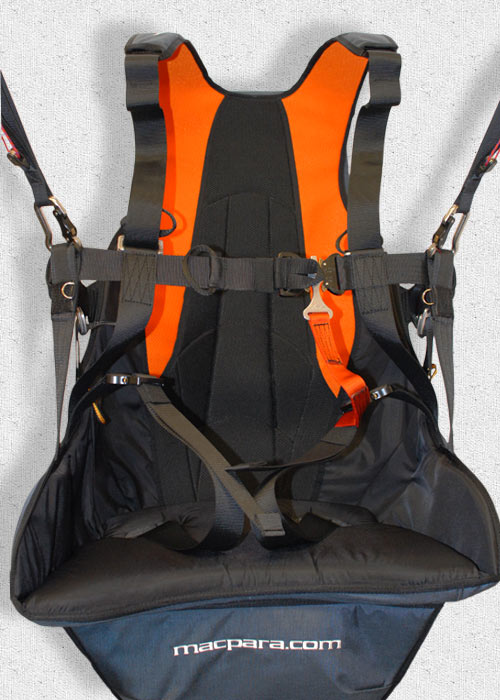

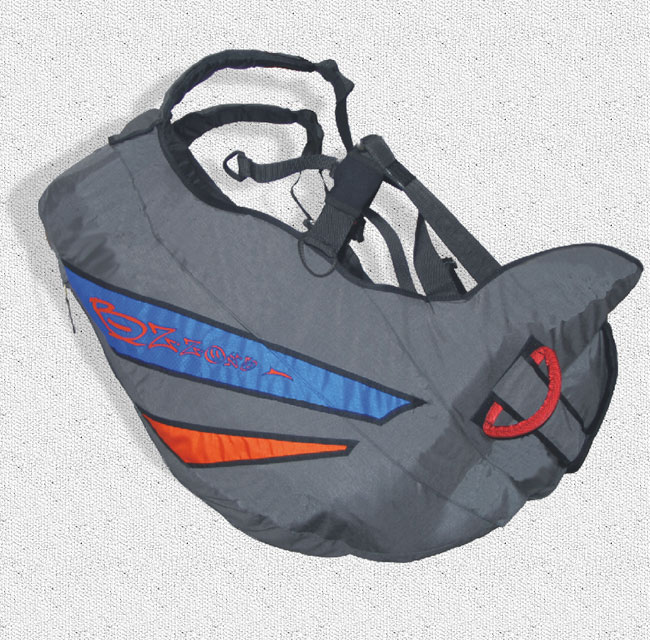

BzZone Harness |
|
The BzZone is a spacious, tandem, "ABS"
harness. A curved cut-out at the front of the seat, a
tapered profile to the seat-board, the shape of the
harness and used materials guarantee convenience and
comfort for pilot and passenger on take-off and during
long flights. These features combine to allow easy
control of the canopy's reactions with a much more
pleasant manoeuvrability by weight shift. The BzZone is
substantially lighter than its predecessor the Perfect
Biplace. Easy adjustment of sitting position after

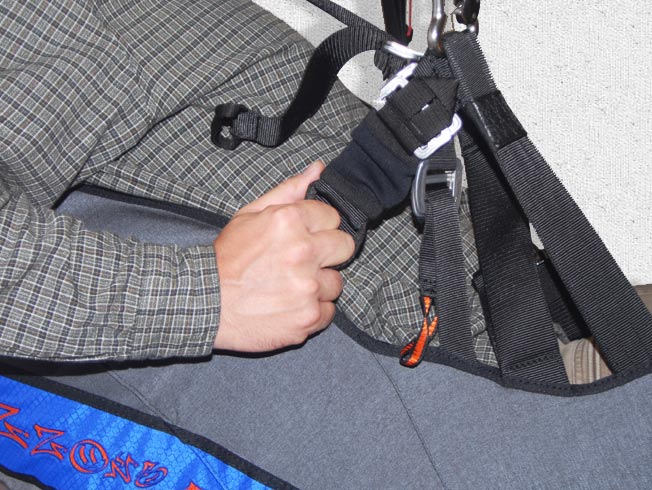

take-off in common with all MAC harnesses. The carabiner
separation (sensitiveness of the harness) can be
adjusted using the chest strap. The reserve container is
placed under the seat and is integrated into the shape
of the harness. It uses a tested “envelope” system with
right-handed deployment. Left-handed deployment can be
supplied to order. The large rear pocket will take a 12
cm foam
protector with plenty of room left over for your

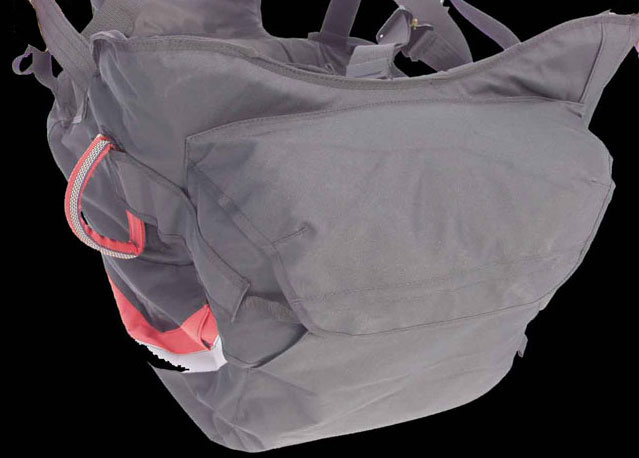

rucksack and other goodies. There is a side pocket to
carry items you may need to access in flight. All MAC
harnesses are precisely made, you can be sure that even
after several years use, it will serve you as well as it
did when new.
|
Technical description
|
|
|
Max. load: |
120
kg
|
|
Karabiner distance: |
38-50
cm |
|
Weight inclusive of back
protection
(without rescue chute): |
4,5
kg
|
|
Back protection: |
Styrofoam
protection; 12 cm with
plastic plate penetration protection |
|
Rescue system: |
Integrated
container (envelope system)
under the seat plate with a lateral
handle. |
|
Certificate
BzZone PL 5 -04/2006
Austrialpin "COBRA" buckles on leg straps
Provision for a 12 cm foam protector (optional foam
protector available)
Radio pocket with provision for leading cables through
the shoulder tunnel
Harness sensitivity in-flight adjustable (ABS)
Very easy weight shift
Large back pocket
The reserve handle is highly visible and easy to reach
Excellent mobility whilst in the harness
Heavy duty material
Aerodynamically cut
Weight of the BzZone harness: 4,5 kg |
|
