The MAC VELVIA 2
Our new lightweight

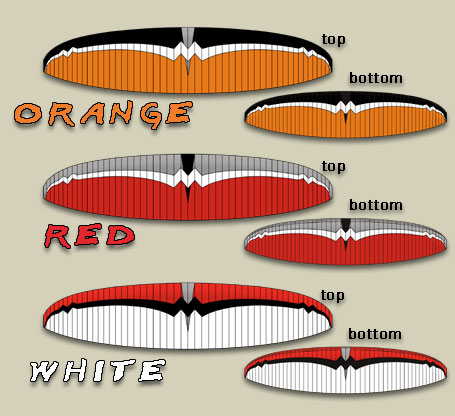

The under-surface is white on all

Designed for pilots and mountaineers who love flying light. Easy to transport the Velvia 2 combines the powerful features of a performance-intermediate glider with a low weight. The market is full of "simply designed" mountaineering gliders and we guess some of them are really boring and slow to launch. MAC PARA decided to combine a higher performance wing with light weight materials. Why to buy two paragliders if one can be enough? Those pilots looking for the lightest performance intermediate can save a lot of money this way.

The Velvia 2 has 52 cells, which get thinner closer to the wing tip. The slim elliptical form of the canopy has an aspect ratio of 5.26. Diagonal V-tapes and a system of load-bearing lines give the canopy stability and influence easy behaviour during extreme manoeuvres. The canopy is fitted with new MAC PARA design on upper and lower surface. The Velvia 2 is equipped with light Dynema tapes that are protected by a sheath. The lines are connected to the risers by loops to save weight. Available are risers with small triangular rapid links for pilots who preffer system like serial gliders.

The weight of Velvia 2-24 is 4,1 kg

The Velvia 2 has very easy ground handling. Everything feels very predictable in all launch conditions. The Velvia 2 has extremely easy take-off even at difficult conditions. The canopy is very resistant to collapse. It features excellent stability throughout the full weight and speed range. In an induced collapse the glider does not rotate quickly and will usually reopen within 50 degrees. The opening is smooth and predictable. Easy launch and landing characteristics are a must for a mountain glider and the Velvia 2 has these in abundance. The measured glide ratio moves between 8.3-8.7:1 and depends on type of harness and pilot`s sitting position. Despite high performance potential and agile handling the Velvia 2 has good dampening in all axes. The canopy does not over shoot and does not hang back when flying in or out of thermals. The light brake pressure allows pleasant turns during long thermal flights, but increases progressively toward the end of its travel to offer safety reserves.

The use of high-quality materials and constant quality control during manufacturing process together with consistent development work on our computer programme “PG” produces high quality products. We are proud of them.






Materials:

Surface Top Leading Edge:

Skytex 9017, Coating E77A 40 g/m2

Surface Top Trailing Edge:

Skytex 9017, Coating E68A 35 g/m2

Surface Bottom:

Skytex 9017, Coating E68A 35 g/m2

Main ribs:

Skytex 9017, Coating E29A 40 g/m2

Diagonal ribs:

Skytex 9017, Coating E29A 40 g/m2

Minor ribs:

Skytex 9017, Coating E68A 35 g/m2

Upper lines:

Edelrid Aramid/Kevlar  6843 – 60 kg, – 80 kg

Main lines:

Edelrid Aramid/Kevlar  7643– 230 kg,– 190 kg,– 140 kg,–80kg

The Velvia 2 is manufactured using the paragliding industries well established lightweight materials with excellent durability and low weight Skytex 40 and Skytex 36, from Porcher Sport (NCV). Because for any glider, the part that always wears out first is the leading edge, we use Skytex 40 with double water repellent coating E77A for this. For the less stressed areas of the sail we use calender Skytex 36 with E68A coating for top sail and Skytex 9052 for bottom sail. For the supporting and diagonal ribs we use Skytex 40 with “hard finish” coating E29A. This gives the advantage of a sail that is both lightweight and very durable


--  --





Velvia 2
24

Velvia 2
26

Velvia 2
28

Zoom flat [%]

92

96.5

100

Area flat [m2]

23.66

26.03

27.96

Area projected [m2]

21.14

23.26

24.99

Span flat [m]

11.16

11.7

12.13

Aspect ratio flat

5.26

5.26

5.26

Root cord [m]

2.63

2.76

2.86

Cells

52

52

52

Weight [kg]

4.1

4.3

4.5

Weight range [kg]*

70-90

77-100

85-110

Min. speed [km/h]

23-25

23-25

23-25

Max. speed [km/h]

36-38

36-38

36-38

Top speed (accelerator)[km/h]

48-50

48-50

48-50

Glide ratio

8.3

8.3

8.3

Min. Sink rate[m/s]

1.15

1.15

1.15

Certificate

DHV 1-2

-

DHV 1-2



* pilot equipped = weight naked + cca. 15 Kg

Velvia 2 uses the same certification as Velvia 1 -  DHV 1-2

Certificate report

 English:

 Velvia  24

Velvia  28
